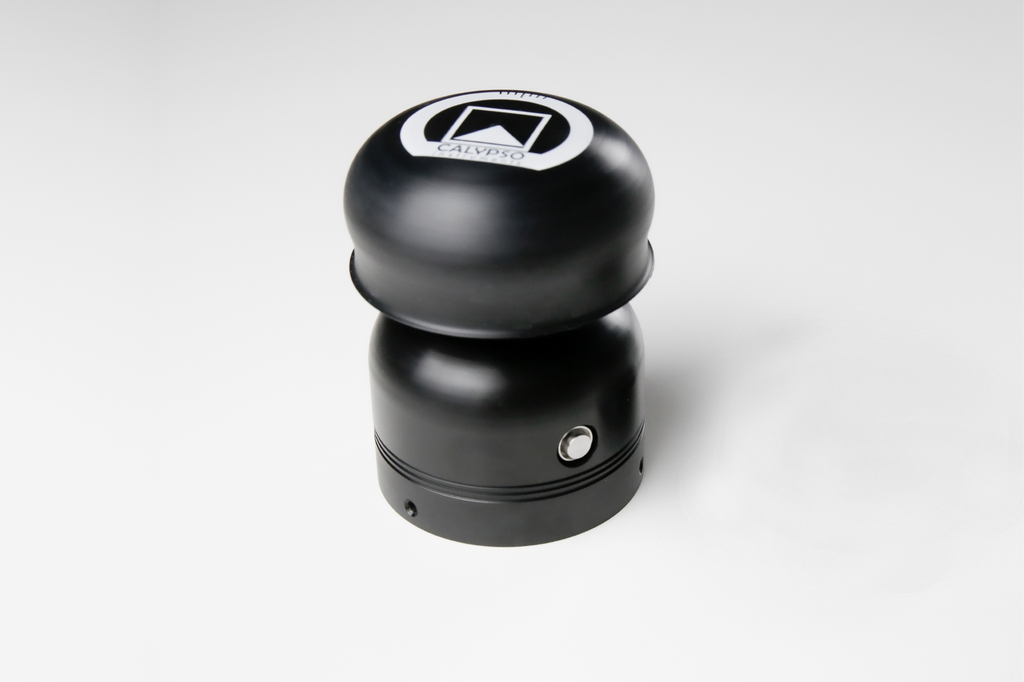

Ultra-Low-Power Ultrasonic wind meter.
The Ultra Low Power LoRa Instrument is a wireless, Bluetooth Low Energy (BLE) and battery-powered, compact ultrasonic anemometer, easy to install, simple to use and compatible with IOS, Android and Garmin watches. This wind meter allows you to get Wind Speed & Direction up to 1,86 miles (3 Km).
The ULP LoRa product was developed to meet the need for a device that can be placed in remote locations without requiring specific infrastructure, enabling data to be received from several kilometers away. This means the anemometer can be installed at a desired location, with data being received remotely “over the air” through a small receiver device that adapts the output format to the client’s preferred configuration. Various markets and situations would find the ULP LoRa particularly beneficial
It's size makes it an ideal stand-alone wind meter of great value on a wide range of industries and applications.
Simple mount
The Ultra Low Power LoRa has a femalethread (1/4") perfect ot be mounted on any tripod
Wireless and Battery Powered
Wireless Charging QI- thanks to its Bluetooth connection, the ULP LoRa can be recahrges on a wireless charged on a wireless charged pad connected via USB to the power.
Applications:
Maritime sector: wind recording at multiple coastal points
Golf: measure speed and direction across different area simultaneously
Ballistics: Long Range Shooting
Wind Energy Sector : Assesment viability of a wind farm
Get Anemotracker app for free!
Despite the multiple apps available, we do provide a free app: Anemotracker. It will allow you to get wind speed and direction from your ULP LoRa. You can also save your wind meter data when tracking.
It includes 4 different modes : Marine, Golf, Meteo and Ballistics.
It will provide you with :
- Apparent wind speed and direction.
- Real wind speed and direction (if used on a vehicle or boat).
- Tracking of your wind data and exportation via excel or Google Earth.
- Available upgrade to the latest firmware version from the App-This new add-on will let the user to upgrade the Ultrasonic Portable to the latest firmware version from Anemotracker app.
- Wind direction adjustable damping.
- Velocity Made Good calculations.
- New derived data: stylish graphs with Means and deviations.
- Configuration from the units of measure: m/s, km/h, Kt.
- Threshold alarm, direction offset, map mode, etc...
Download it for IOS
Download it for Android
Download it for Garmin Connect IQ
Internal Reference Code: CMI1064
MaterialNylon polymer
DimensionsDiameter : 70mm (2.76 in.)Height : 95mm (3.74in.)Weight : 213 grams (7.1 oz.)
Wind SpeedRange : 0.5-25 m/s (1.12 -56mph)Accuracy : ±0.3 m/s at 10 m/s (0.22 mph at 22 mph Threshold: 0.5 m/s (1.12 mph)
Wind DirectionRange : 0-359º
Accuracy : ± 1
Wind Information
speed & direction
Sensors Ultrasonic transducers (4x)
Sample rate 1Hz
Power
ULP LORA3.3- 5DCV Battery powered (Wireless charging QI) ReceiverLythium polymer battery USB-C charging
Battery runtime50 hours Active use Battery (Same batery runtime for the ULP LoRa and the receiver)
Data OutputULP LoRa:
LoRa P2P (up to 3km direct line of sight). Our device is available for LoRa frequencies 868 and 915 MHz being added in the future.
Bluetooth RangeVersion 5.1 or beyond
FirmwareUpgradable. via Bluetooth
IP CodeULP LoRa: IPX8 protection grade Receiver: IP 65
Mount3xM3 base female tripod thread 3xM4 lateral female thread UNC1/4"-20 3XM4 inferior female tripod thread-UNC1/4"-20
Data OutputBluetooth
