Ultra-Low-Power Ultrasonic wind meter PRO (ULP PRO).
Wind meter, a 45m/s IoT, Ultra-Low-Power Ultrasonic wind meter PRO (ULP PRO).
Ultra-Low-Power (RS485 NMEA 0183: 0,25 mA @5V, 1Hz / MODBUS : 1 mA @5V, 1Hz)
Ultra-Low-Power (UART): 0,15 mA @5V, 1Hz

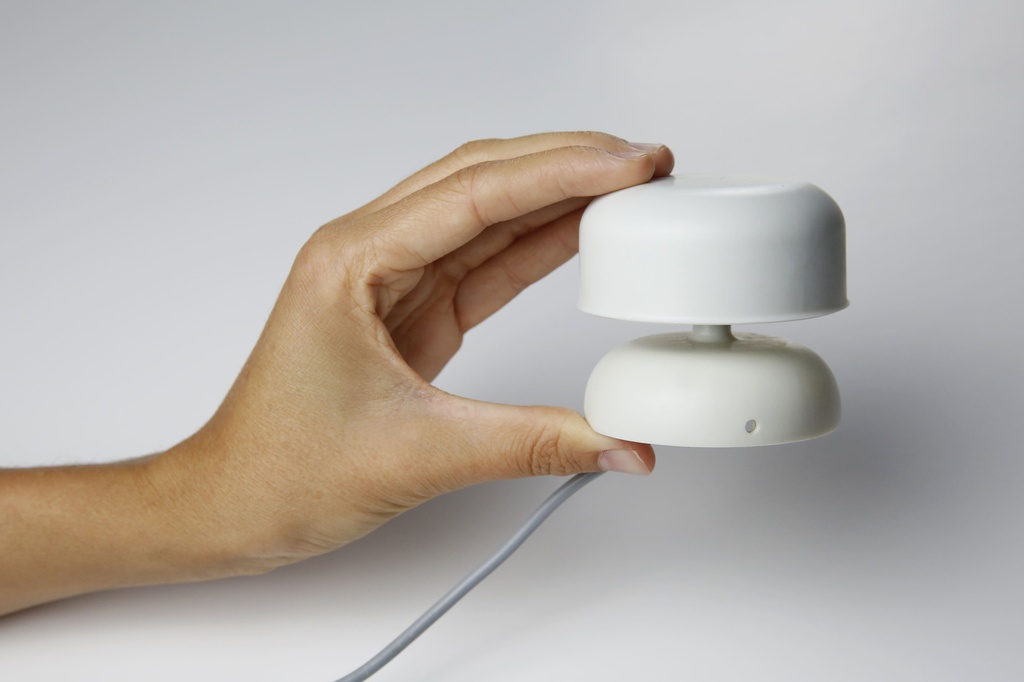

Small: 68 mm (2.68 in.) diameter.
Light: 200 grams (7.05 oz.)
The ULP PRO represents an important technology breakthrough condensing an extensive R+D investment that brings us to a new generation of ultrasonic wind meters.
- Both shape and firmware have been enhanced for an improved rain performance, being this point key for static applications such as weather stations.
- Mechanical design has been revamped making the unit more robust and dependable.
- We feel very proud to release a unit that requires under 0,25mA @1Hz (RS485), and 0,15mA @1Hz (UART).
(Further protocols under request).
485 MODBUS
The 485 Modbus product can provide 1-minute, 5-minute, and 10-minute averages, as well as the maximum gust recorded.
Applications:
Agriculture: Precision Agriculture/ Spraying/ Fertilicers and Irrigation
Energy & Industry : Solar / Wind Power / Cranes /Elevators / Gas, oil & Industrial Plants
Infraestructures & construction: Tunnels, Roads & Bridges/ Buildings & Temporary Constructions
Marine: Fishing & Comercial/ Sailing, yacthing and watersports/ Marinas and Harbours
Scientific & Meteorology: Research/ Metereological monitoring/ Air Quality and environmental/ Smart Cities
The package contains the following:
- One ULP Pro Wind Instrument plus 2 meters (6.5 ft) of cable for connection
- Serial number reference on the side of the packaging.
- A quick user guide on the back of the packaging and some more useful information for the customer.
- M3 headless screw (x7)
Internal Reference Codes:
The SKU/CMI product number for the ULP Pro 45m/s Wind Meter with RS485 (NMEA0183) / MODBUS protocol is CMI1019.
The SKU/CMI product number for the ULP Pro 45m/s Wind Meter with UART/12c protocol is CMI1032.
he SKU/CMI product number for the ULP Pro 45m/s Wind Meter with SDI12 protocol is CMI1062.
Specifications
| Protocols | UART/ I2C or RS485 (NMEA0183) / MODBUS or SDI12 |
| Speed range | 45m/s |
| | No extra features |
