Ultra Low Power-Ultrasonic wind meter

Ultra-Low-Power Ultrasonic wind meter.

Wind meter, a 45m/s IoT, Ultra-Low Power Ultrasonic Anemometer:

Ultra-Low-Power (RS485 NMEA 0183: 0,25 mA @5V, 1Hz / MODBUS : 1 mA @5V, 1Hz)

Ultra-Low-Power (UART): 0,15 mA @5V, 1Hz

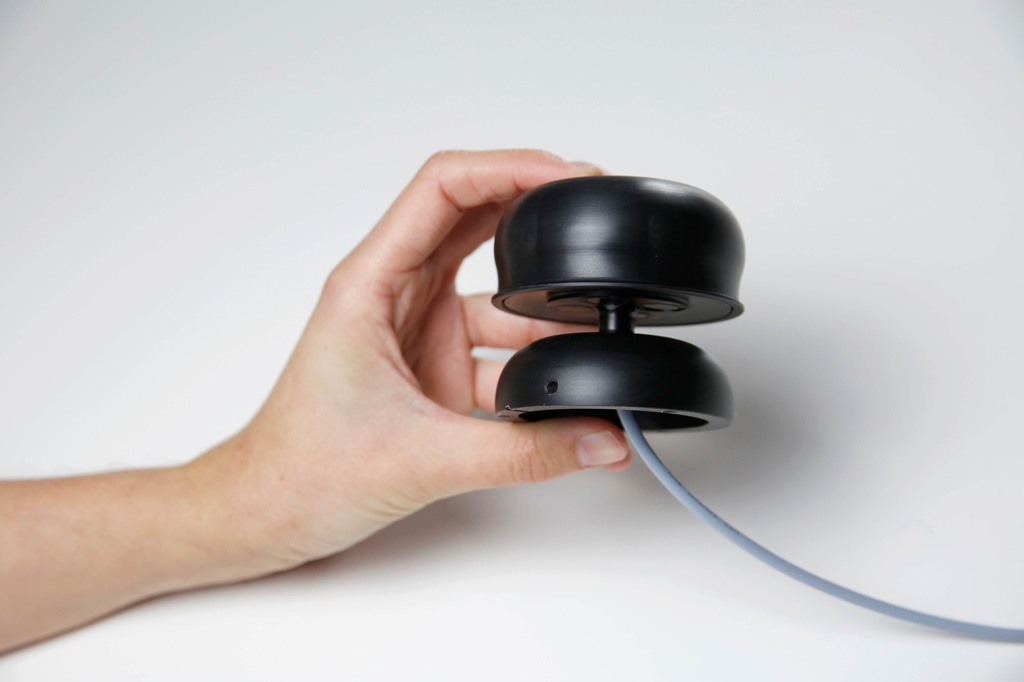

Small: 70x70 mm

Light: 130-240gr

The ULP represents an important technology breakthrough condensing an extensive R+D investment that brings us to a new generation of ultrasonic wind meters.

Both shape and firmware have been enhanced for an improved rain performance, being this point key for static applications such as weather stations.
Mechanical design has been revamped making the unit more robust and dependable.
We feel very proud to release a unit that requires under 0,25mA @1Hz (RS485), and 0,15mA @1Hz (UART)

(Further protocols under request).

485 MODBUS

The 485 Modbus product can provide 1-minute, 5-minute, and 10-minute averages, as well as the maximum gust recorded.

Certifications

Applications:

Agriculture: Precision Agriculture/ Spraying/ Fertilicers and Irrigation
Energy & Industry: Solar / Wind Power / Cranes /Elevators / Gas, oil & Industrial Plants

Infraestructures & construction: Tunnels, Roads & Bridges/ Buildings & Temporary Constructions

Marine: Fishing & Comercial/ Sailing, yacthing and watersports/ Marinas and Harbours

Scientific & Meteorology: Research/ Metereological monitoring/ Air Quality and environmental/ Smart Cities

Firefighing: Wildfire, urban firefighting

Ballistics: Long Range Shooting

Drones and aviation: Airports/ UAV

Outdoors

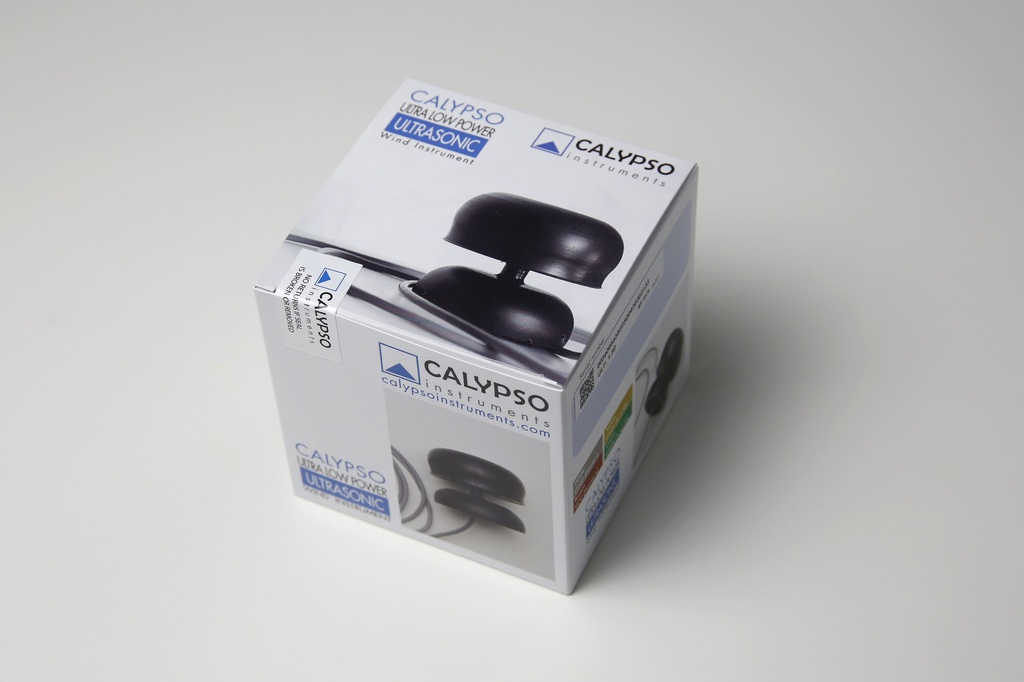

The package contains the following:

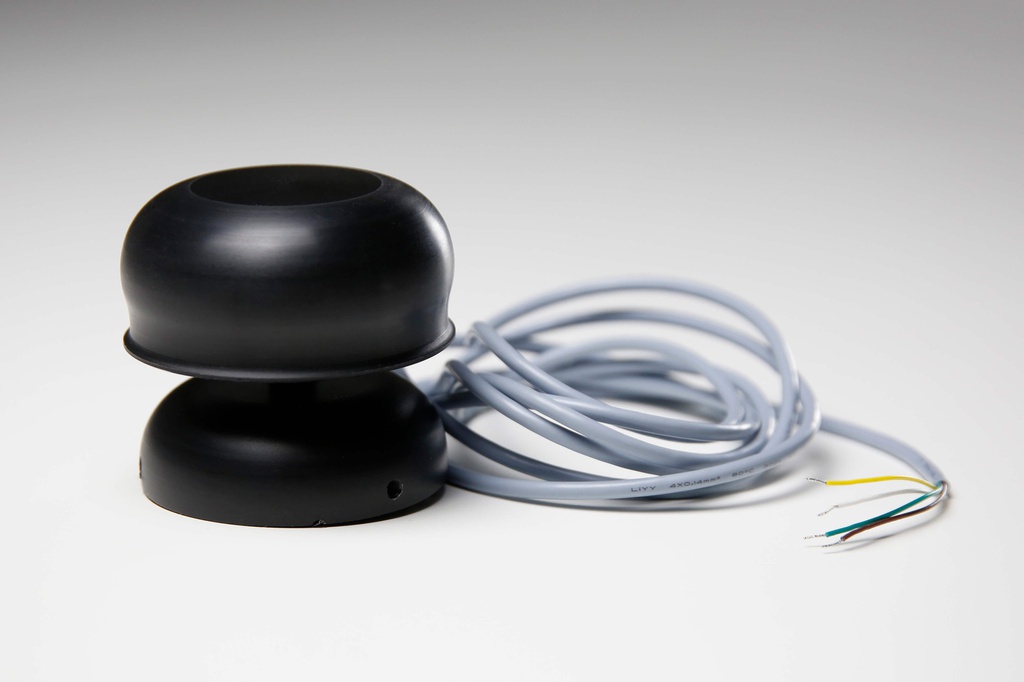

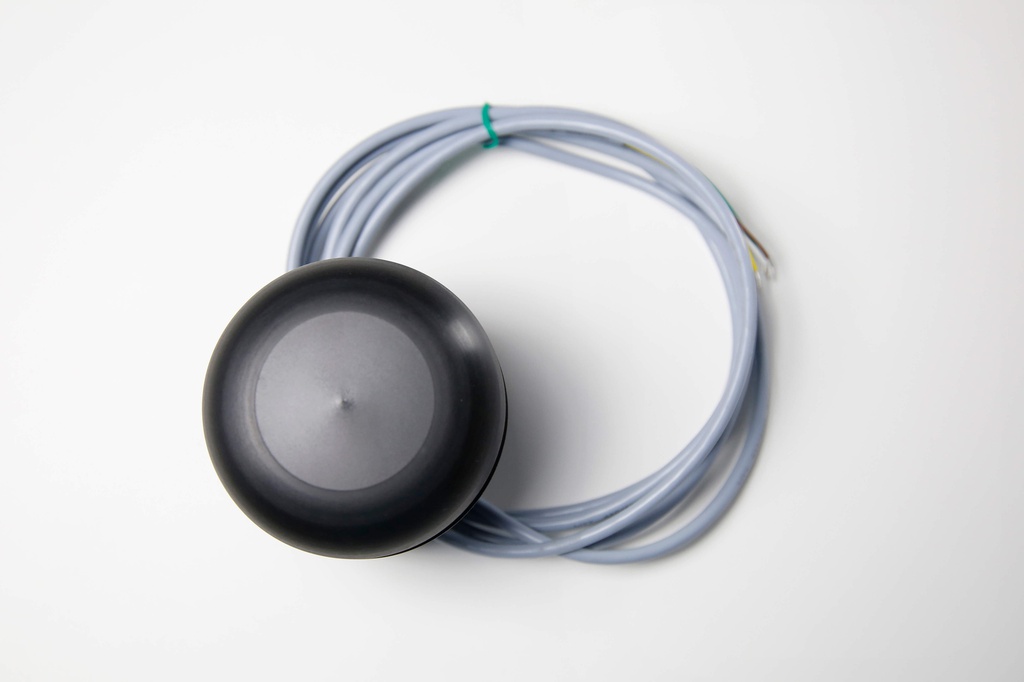

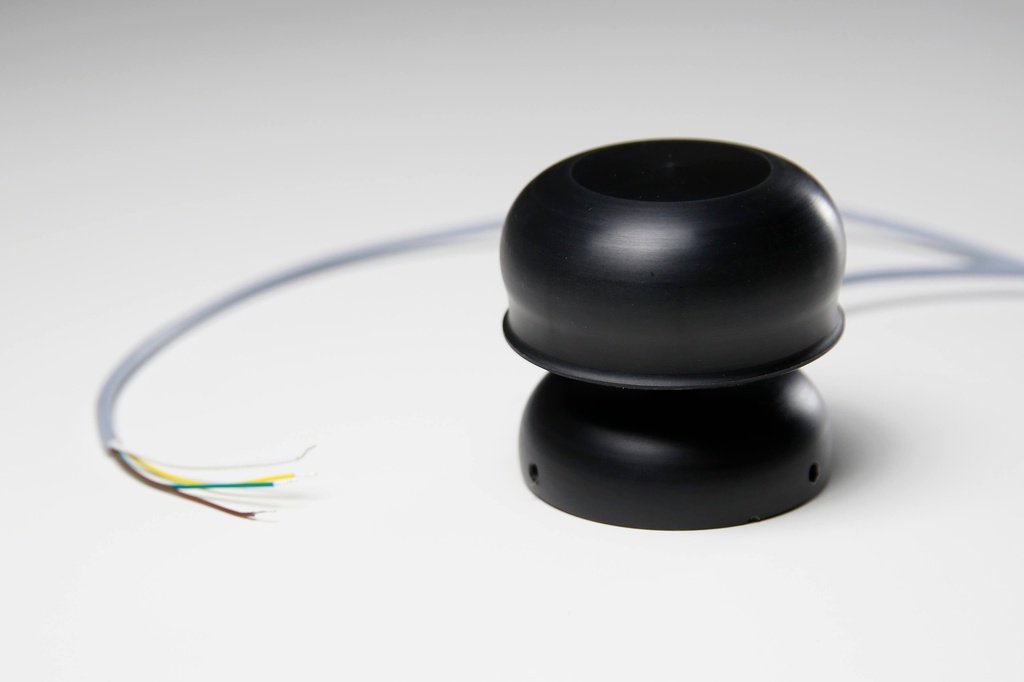

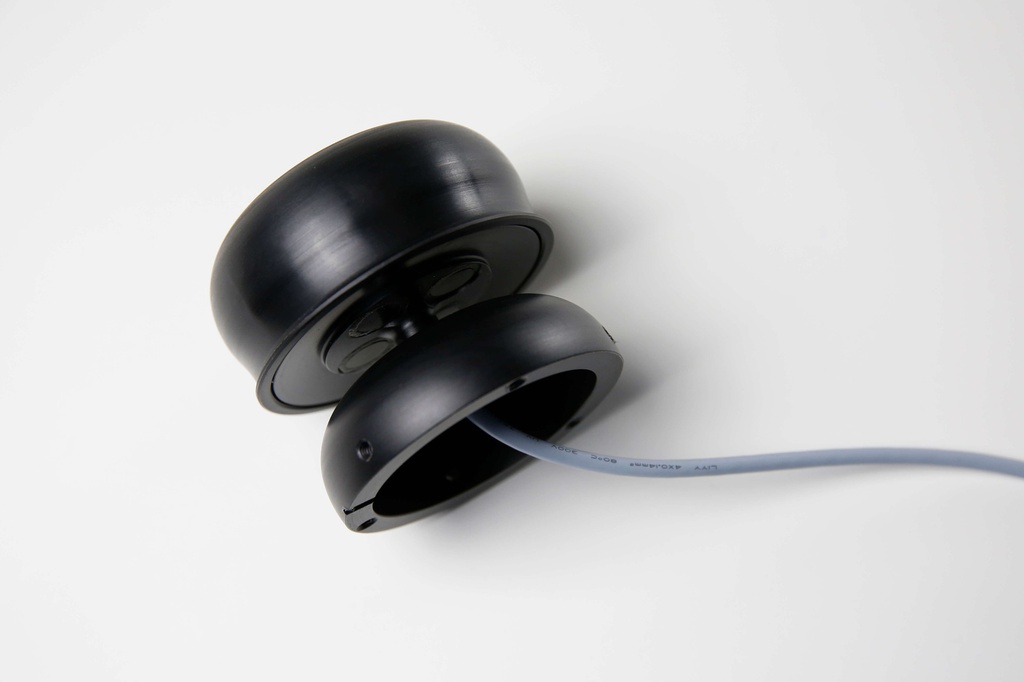

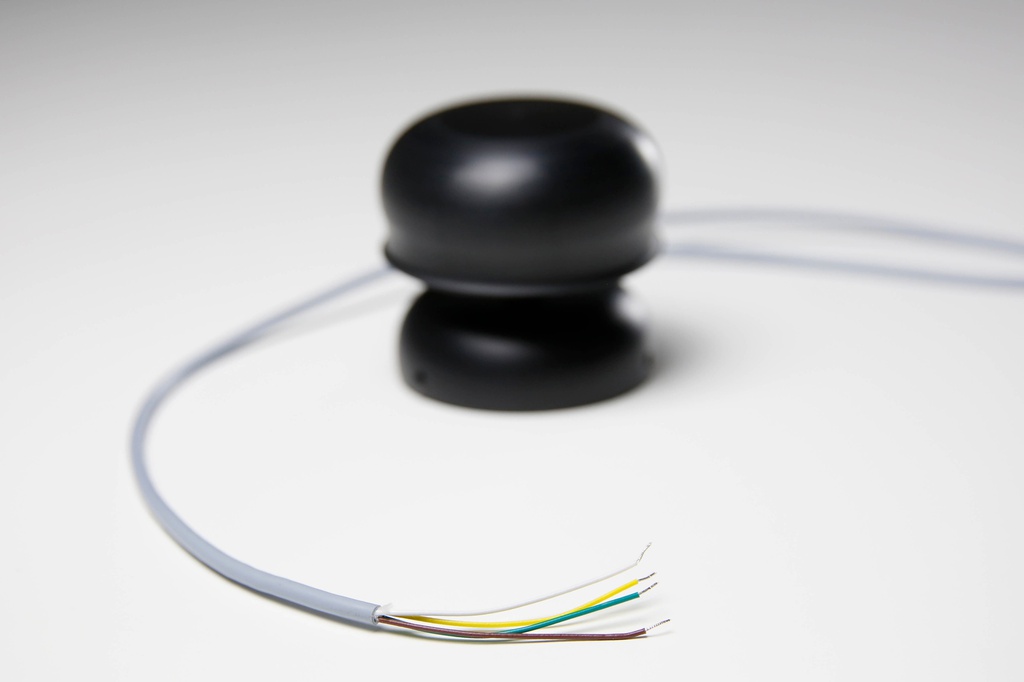

Ultrasonic ULP STD Wind Instrument plus 2 meters (6.5 ft) cable for connection*

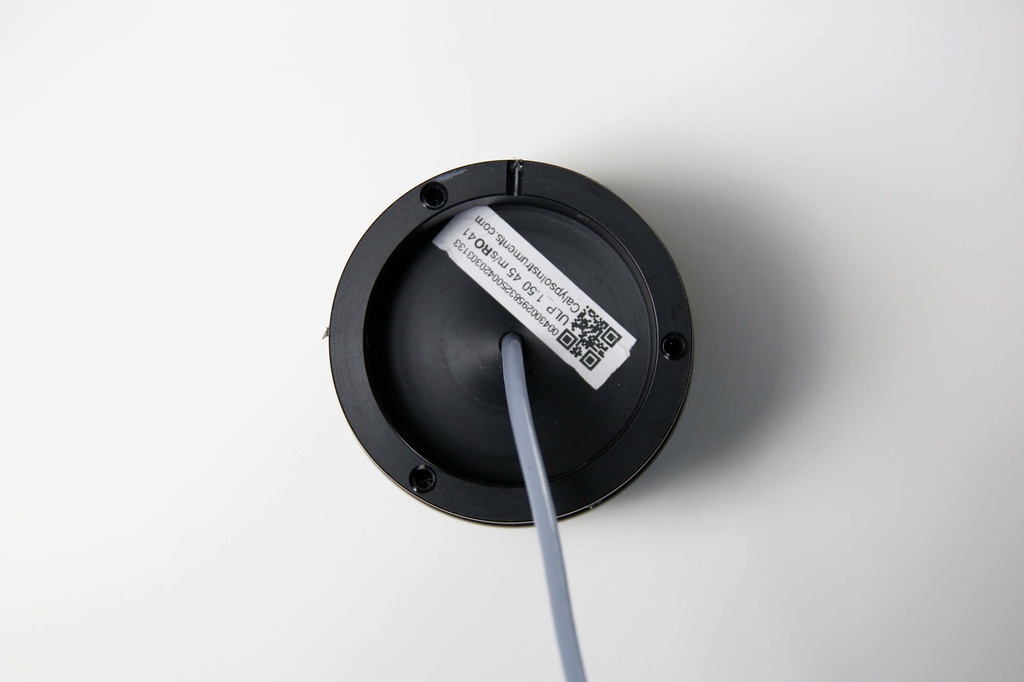

Serial number reference on the side of the packaging.
A quick user guide on the back of the packaging and some more useful information for the customer.

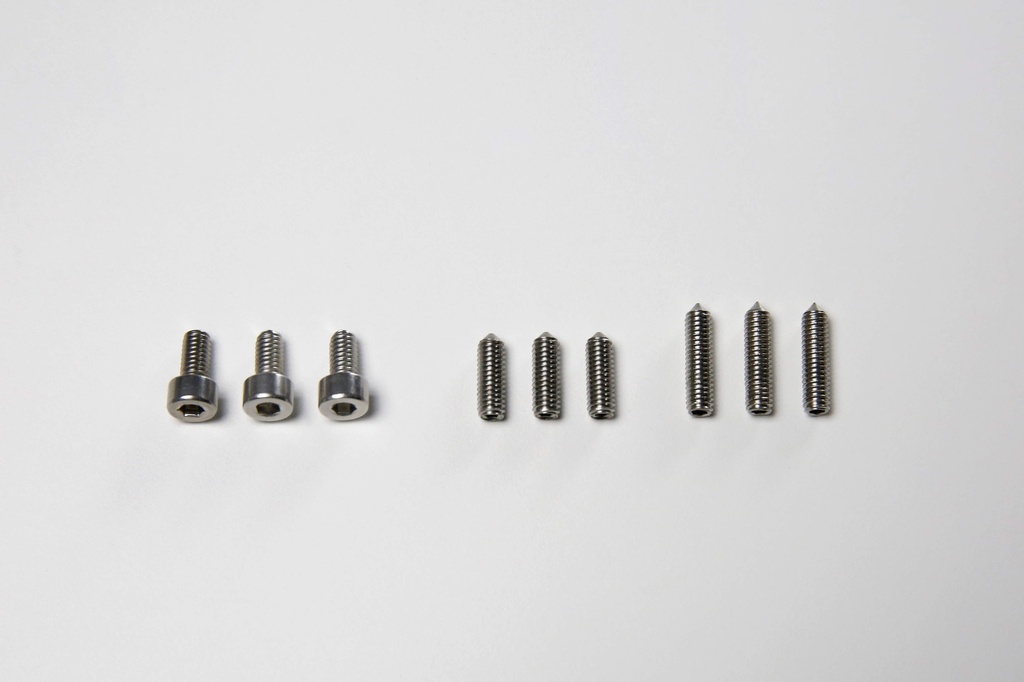

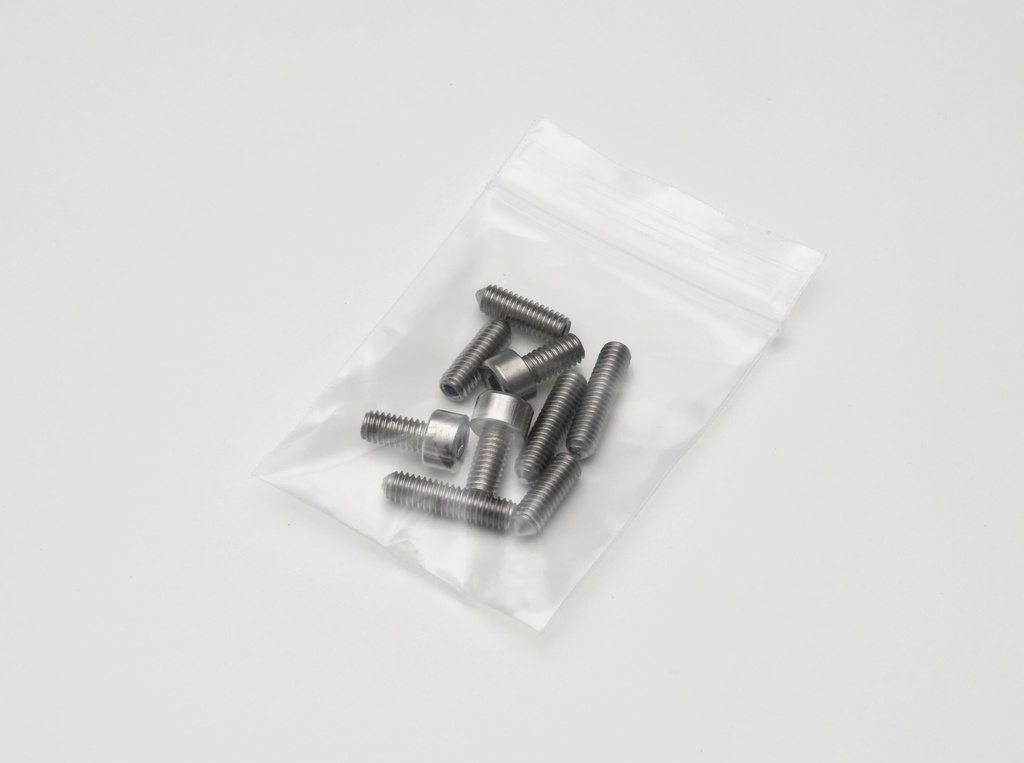

M4 headless screw (x6)
M4 screw (x3)

*USB converter cables are available here.

Internal Reference Codes:

- The SKU/CMI product number for the ULP Standard 45m/s Wind Meter with RS485 (NMEA0183) / MODBUS protocol is CMI1017.

- The SKU/CMI product number for the ULP Standard 45m/s Wind Meter with UART/12c protocol is CMI1018.

- The SKU/CMI product number for the ULP Standard 45m/s Wind Meter with Analog 4-20mA protocol is CMI1034.

- The SKU/CMI product number for the ULP Standard 45m/s Wind Meter with SDI12 protocol is CMI1051.

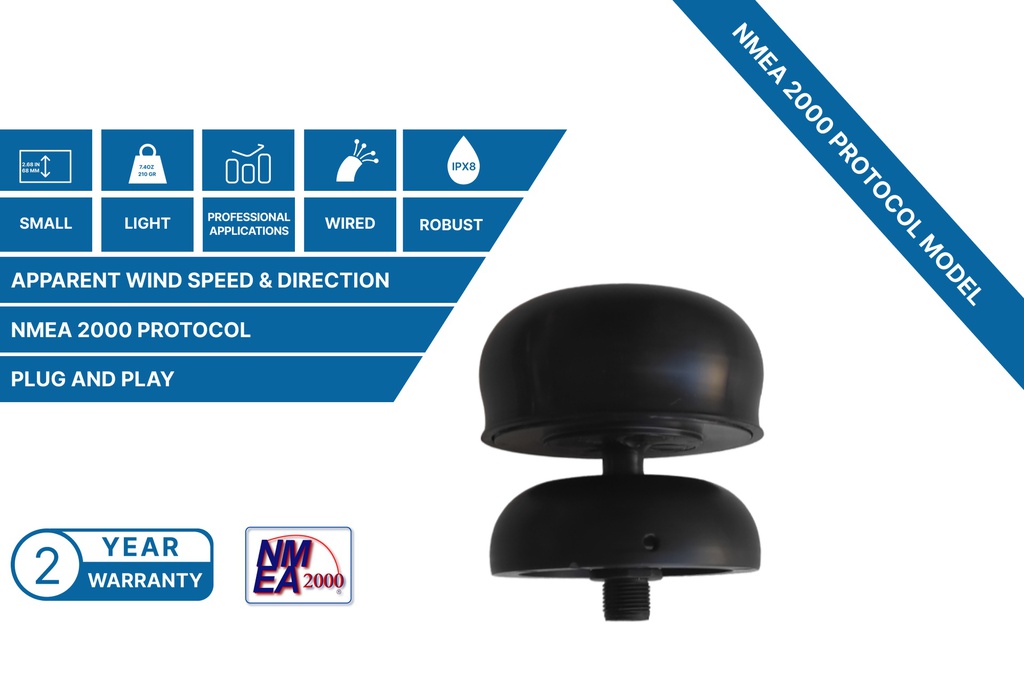

- The SKU/CMI product number for the ULP Standard 45m/s Wind Meter with NMEA 2000 protocol is CMI1035.

Material
Machined engineering plastic (black)

Dimensions
Diameter : 70 mm (2.76 in.)
Height : 65 mm (2.56 in.)
Weight : 210 grams (7.4 oz.)
Wind Speed
Range : 0.5-45 m/s (1.12 -100 mph) or 0.5-25 m/s (1.12 - 56 mph)
Accuracy : ± 0.3 m/s up to 10m/s and 3% from 10 to 45m/s

Wind Direction
Range : 0-359º
Accuracy : ± 1

Wind Information

Aparent wind speed & direction

Sensors
Ultrasonic transducers (4x)

Sample rate
0.1 Hz to 20 Hz (depending on the filter mode)

Power

3.3-18 DCV

Firmware
Upgradable. Configuration via USB

IP Code
IPX8 protection grade

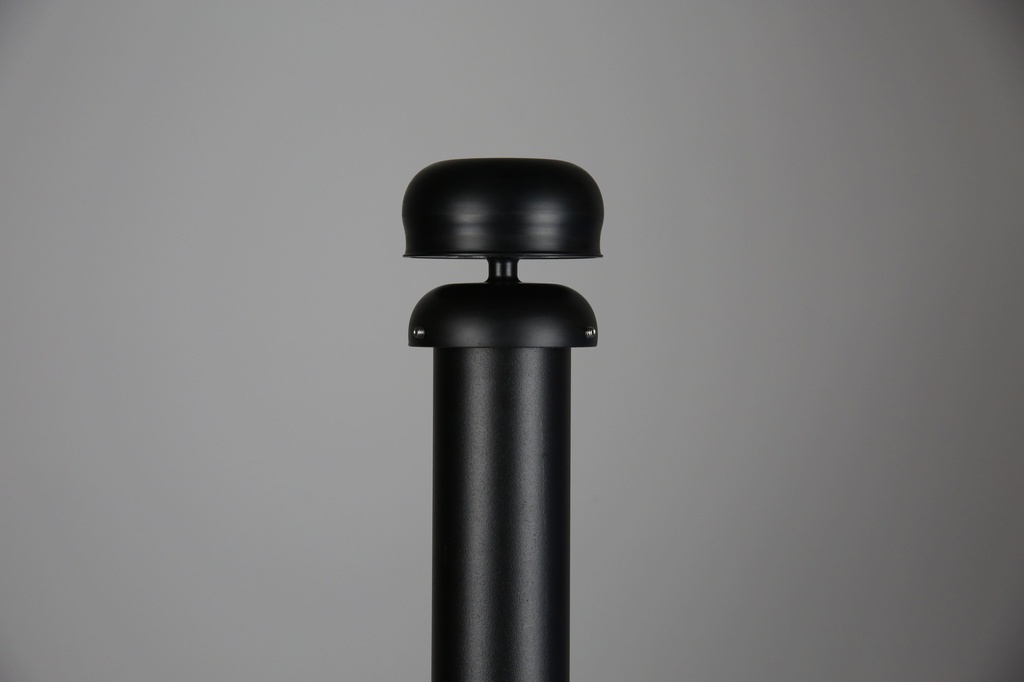

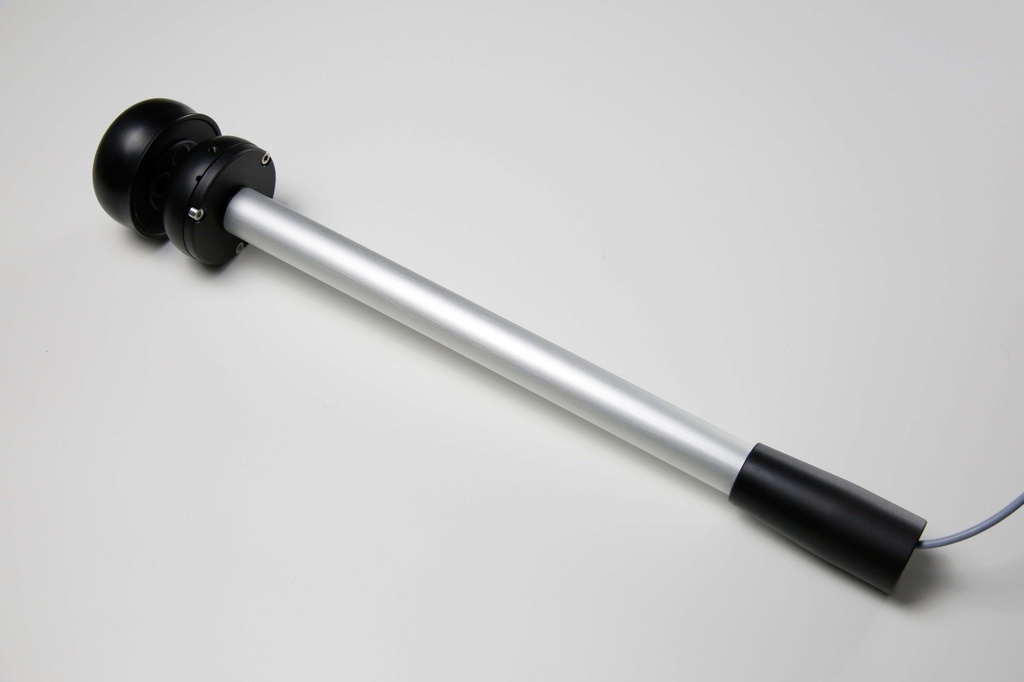

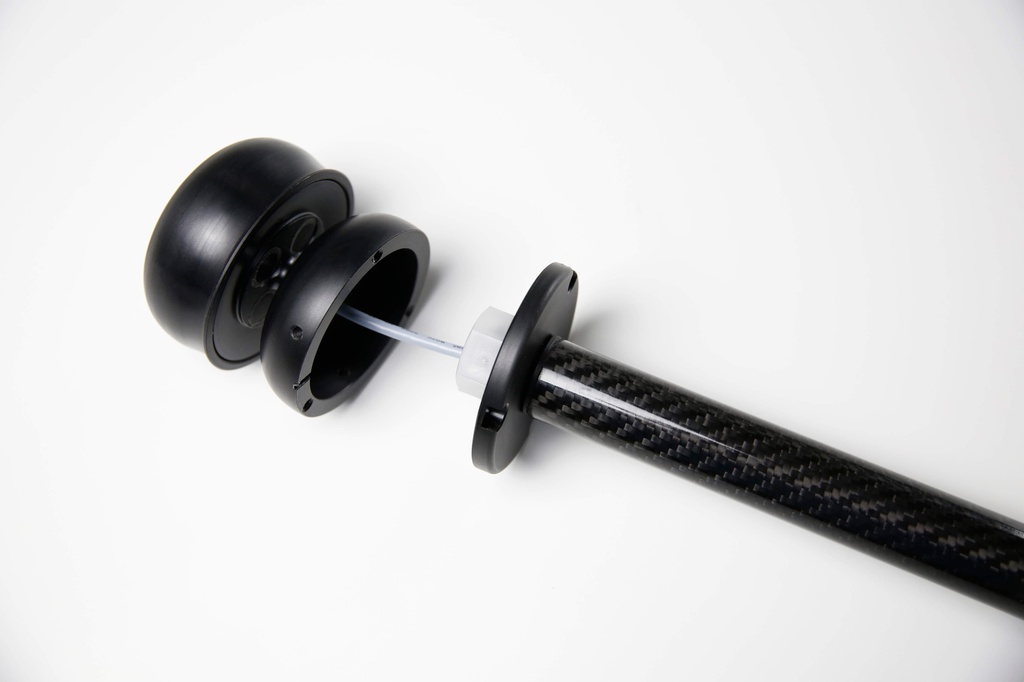

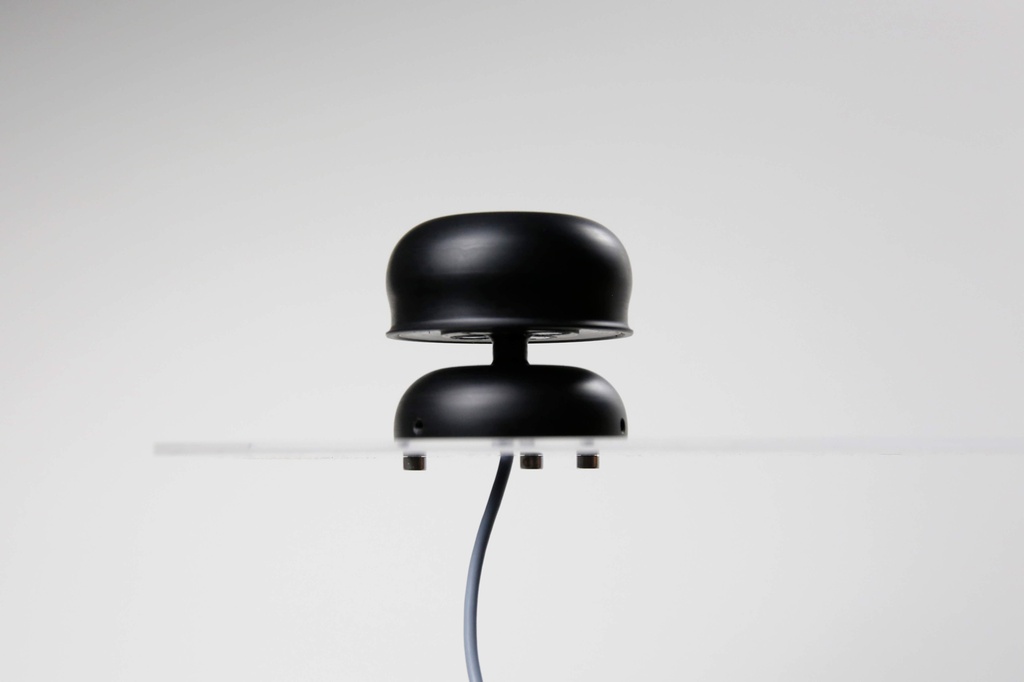

Mount

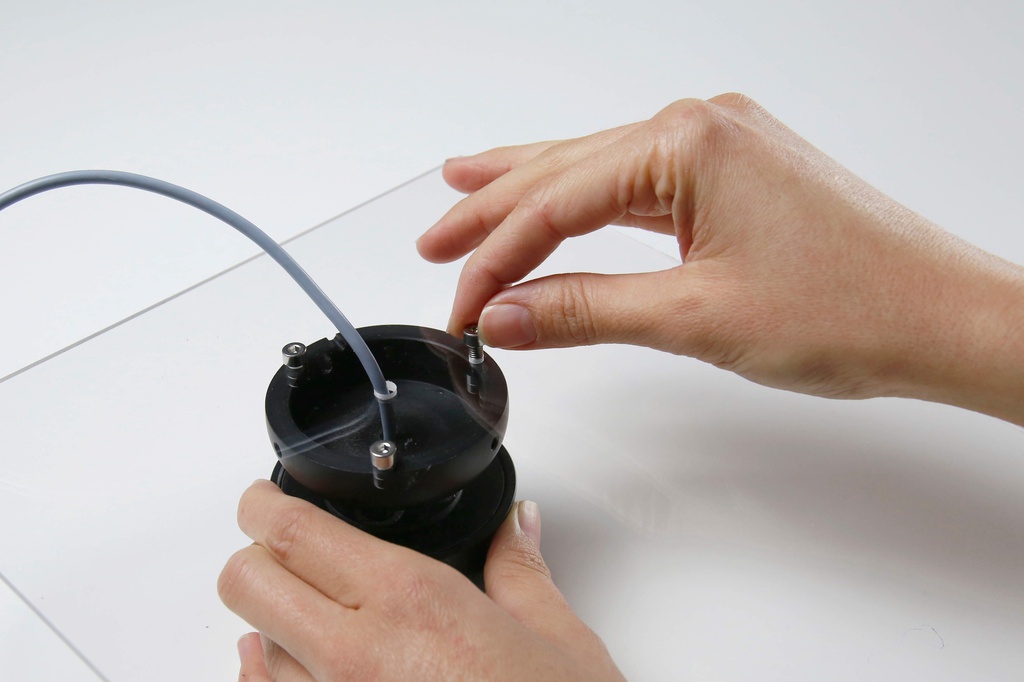

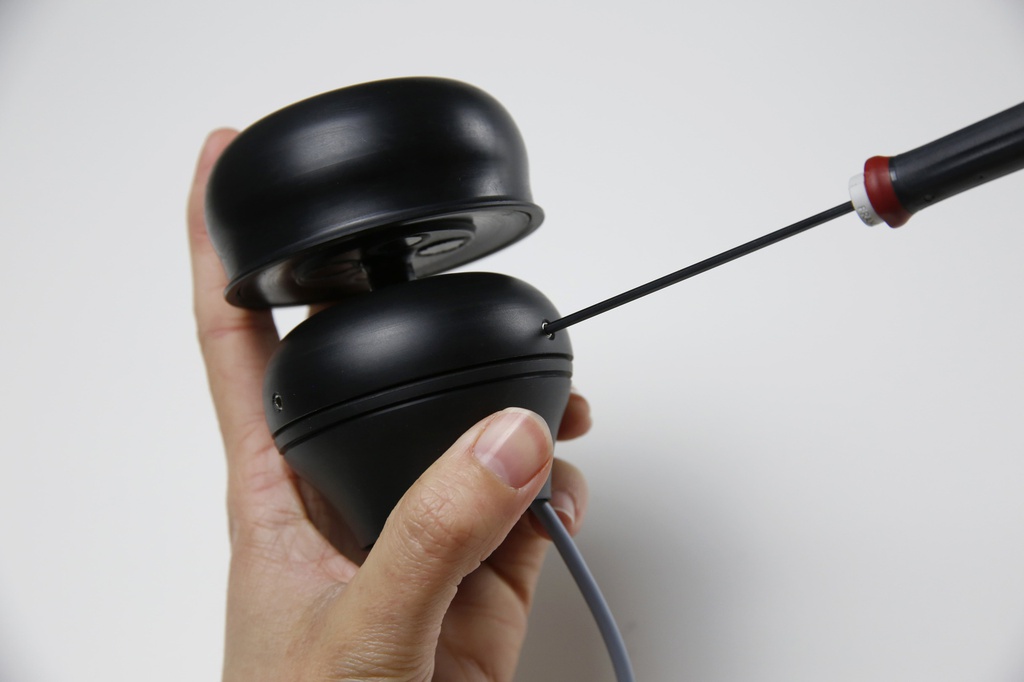

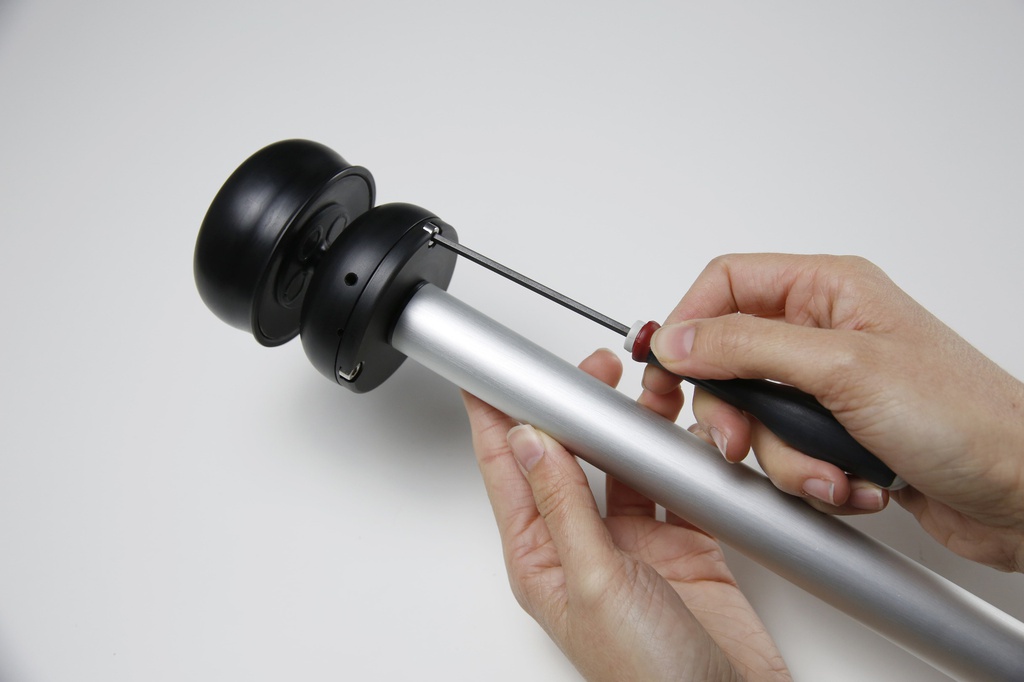

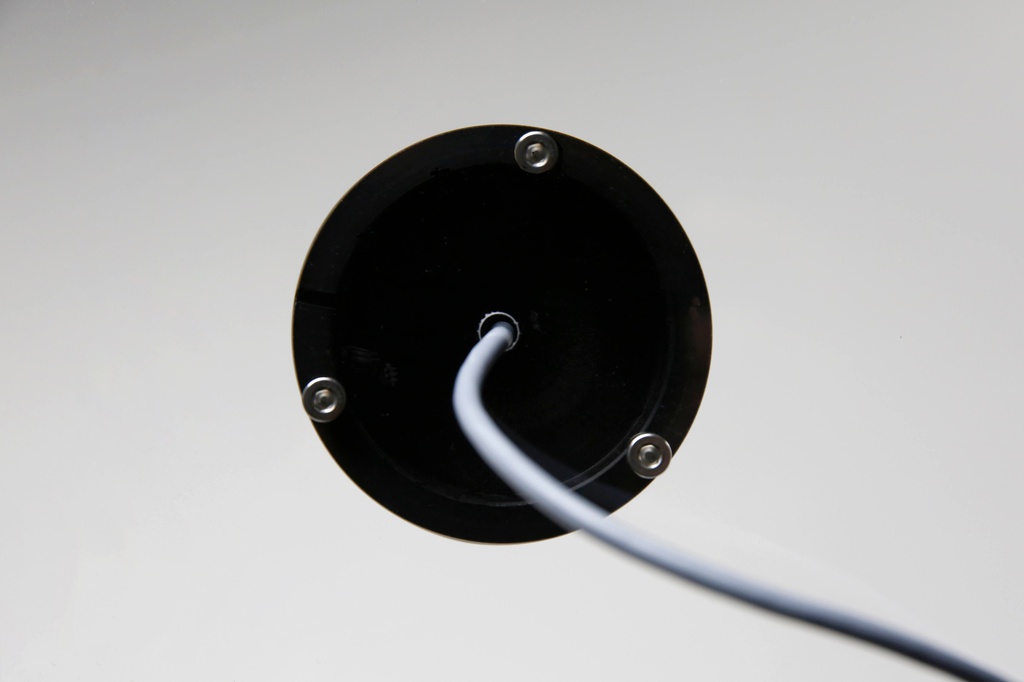

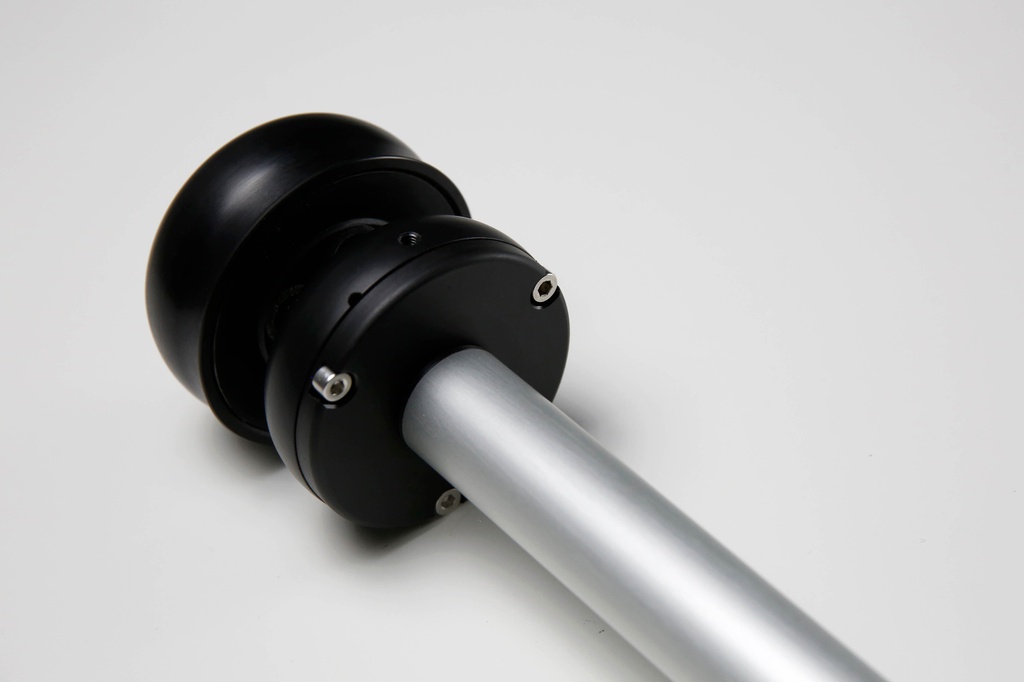

3xM4 lateral female thread screw, 3xM4 inferior female thread screw

Compatibility
NMEA Connect Plus

Data Output
RS485 ( NMEA 0183 Poll or Stream)
RS485 MODBUS (NMEA 0183 Poll or Stream)

UART (NMEA 0183) Poll / Stream
Analog output 4-20 mA
SDI-12

Datasheet
(All protocols) Instruction Manual

MODBUS & RS485 Protocol Manual -
UART & I2C Protocol Manual -
SDI-12 Protocol Manual -
Analog 4-20 Protocol Manual -

Instruction Manual (Chinese)

Specifications

Protocols	UART/ I2C or RS485 (NMEA0183) / MODBUS or Analog 4-20mA or NMEA2000 or SDI12
Speed range	45m/s
	No extra features

Ultra-Low-Power Ultrasonic wind meter (ULP Standard)

514.00 € 514.0 EUR 514.00 €
